Pixel Density: | 3100 | View Angle(H/V): | 140/70 ° |
---|---|---|---|
Cabinet Weight: | 8 kg / cabinet | Driving Mode: | 1/4 scan |
Gray Scale: | 16 bit | Cabinet Resolution: | 32 x 32 dots |
IP Rating: | IP 65 | Pixel Configuration: | SMD5050 |
Điểm nổi bật: | Led Curtain Screen,Outdoor Led Curtain |
P18 SMD5050 LED Video Curtain display 1/4 Scan screen IP65 576×576×60 mm cabinet
Product description:
Parameter:
P18 Full Color LED Display Main Parameters | ||
Visual Characteristics | Unit | Value |
Pixel Pitch | mm | 18 |
Pixel Density | Dots/sq.m | 3100 |
Pixel Configuration | SMD5050 | |
Cabinet Resolution | dots | 32×32 |
Refresh Rate | Hz | ≥1200 |
View Angle(H/V) | ° | 140/70 |
Brightness | nits | ≥2500 |
Gray Scale | Bit | 16 |
IP Rating | 65 | |
Power Consumption(Max/Avg) | W/sq.m | 500/150 |
Input Voltage(AC) | V | 110~220 |
Modular Characteristics | ||
Cabinet Size(W×H×D) | mm | 576×576×60 |
Cabinet Material | ||
Cabinet Weight | Kg | 8 |
Module Size(W×H) | mm | 576×576 |
Environment | ||
Operation Temperature | ºC | -20~+40 |
Operating Humidity | 10%~90% | |
Driving Mode | 1/4 Scan | |
Control Distance | Cat 5E <100m,Single mode fiber<10Km | |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Our company:
Shenzhen LED World co.,ltd. was founded in 2007, with a registered capital of 15 million Yuan, a workshop covering an area of 9000 square meters and independent living and production places. Our company is professional in the development and manufacture of LED display systems. Our company technology strength is among the front row in this area, with a vigorous team.
Why choose us:
FQA:
Product aging:

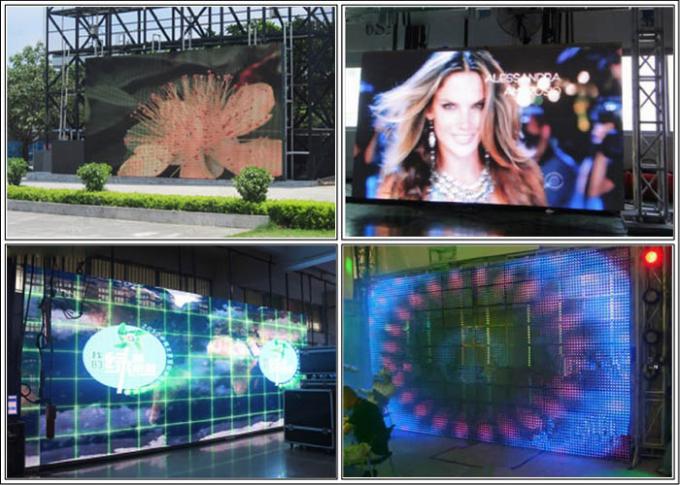

Project case:
